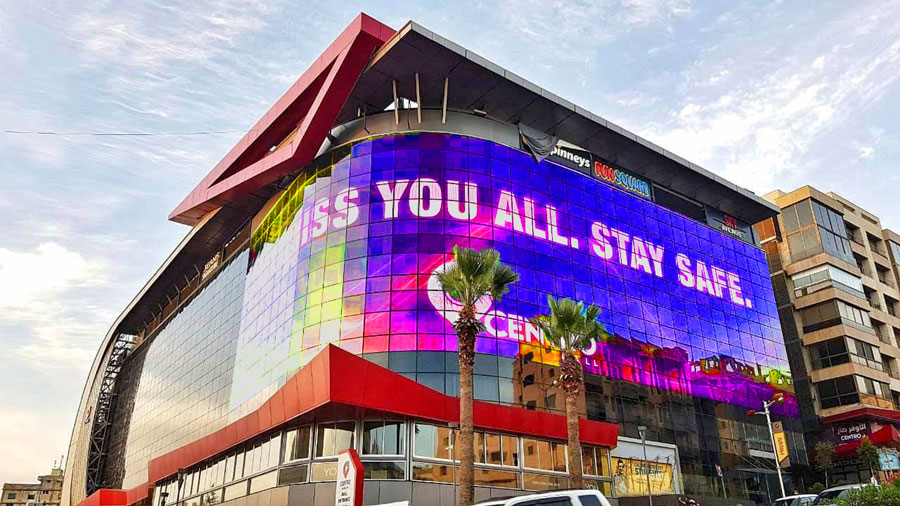

Media façade systems integrated with architecture and building exteriors

Not every exterior LED display is a media façade.

Conventional outdoor LED screens are often installed as clearly defined rectangular display surfaces on walls, rooftops, structures or freestanding supports.

A media façade becomes more architectural when the display is integrated with, distributed across or visually coordinated with the building envelope.

The distinction matters because the technical and visual requirements can be very different.

The project should first define whether the requirement is a conventional exterior screen, an architectural display layer or another façade-integrated format.

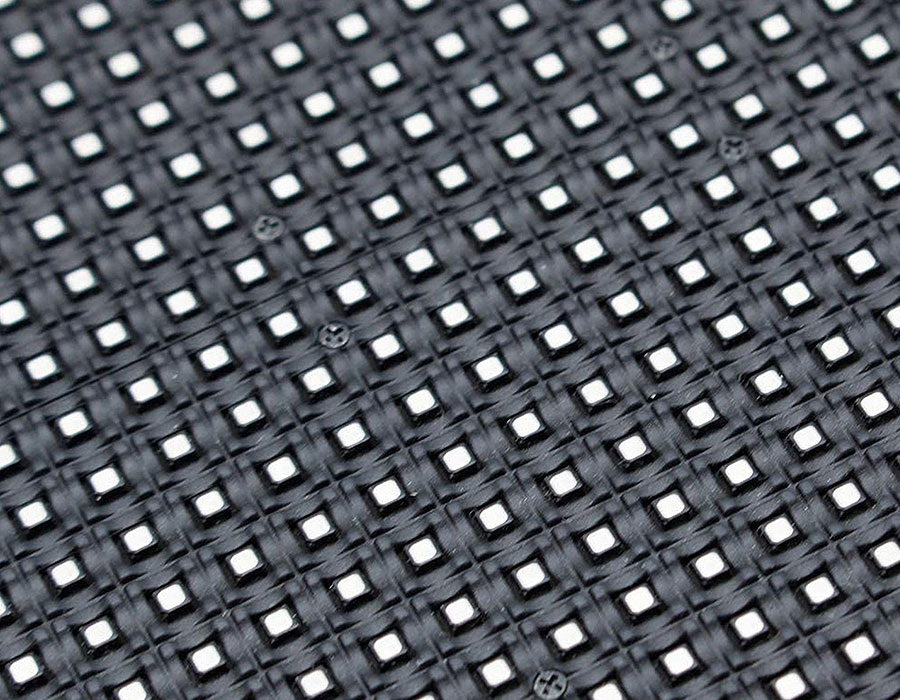

Media façades can use different display constructions depending on the architecture and the visual objective.

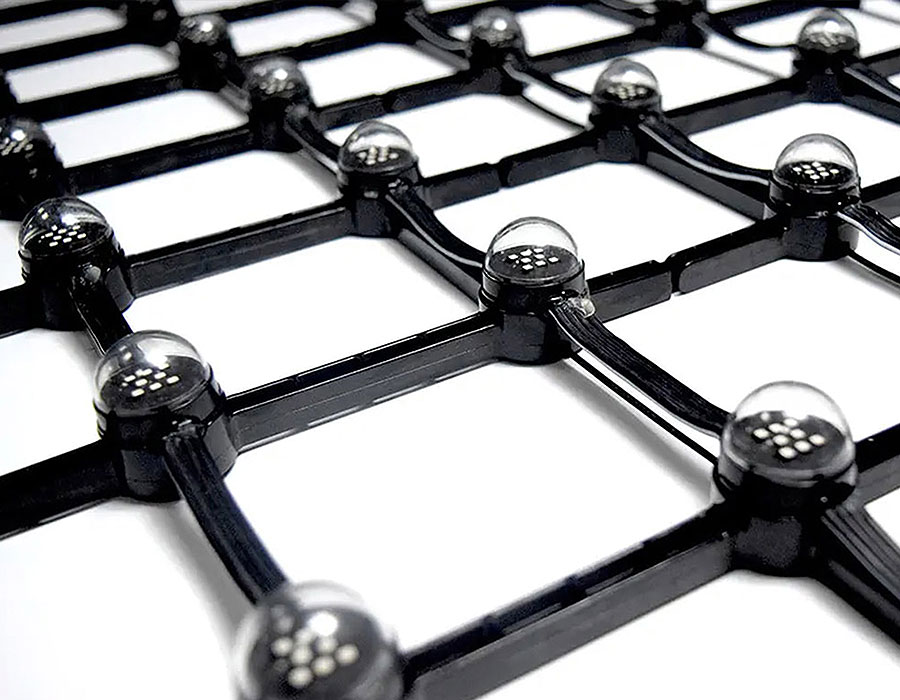

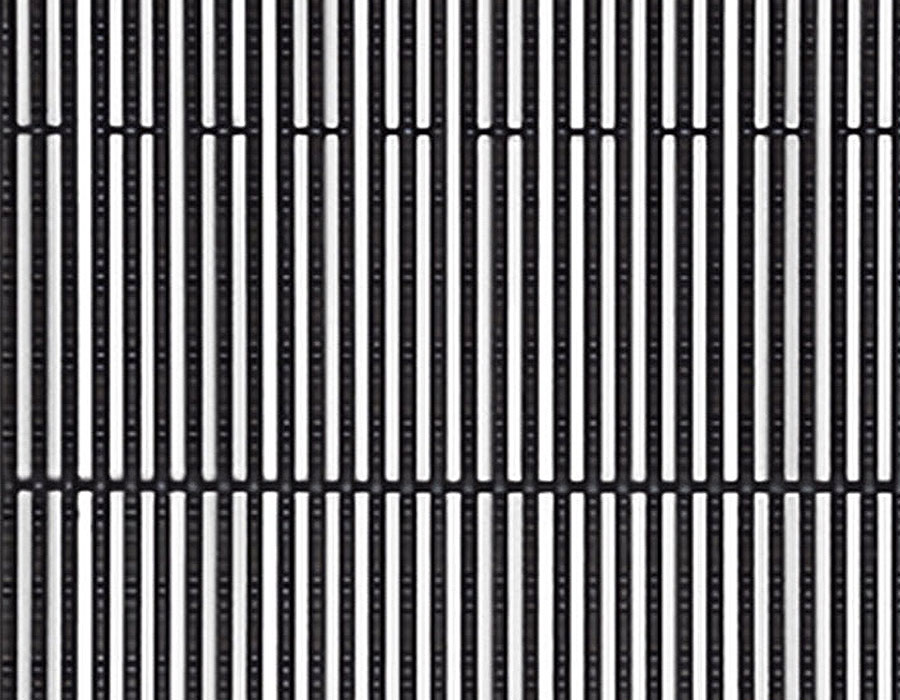

Some projects may suit solid LED surfaces. Others may require mesh, strip-based or more transparent systems where daylight, views or the appearance of the façade behind the display need to remain part of the design.

Transparent LED displays can be relevant where maintaining visual openness is important, although the appropriate technology depends on the specific building condition and viewing requirement.

Display type should therefore follow the architectural brief rather than being selected independently from it.

A façade can be viewed from very different distances.

Some audiences may see the building from across a street, while others may approach from much farther away.

The relationship between display dimensions, pixel pitch, content scale and viewing distance should be considered together.

A specification that is appropriate for a close-range indoor screen may not be appropriate for a large architectural surface viewed from a distance.

The objective is not simply to maximize resolution, but to match visual detail to the actual scale and viewing conditions of the site.

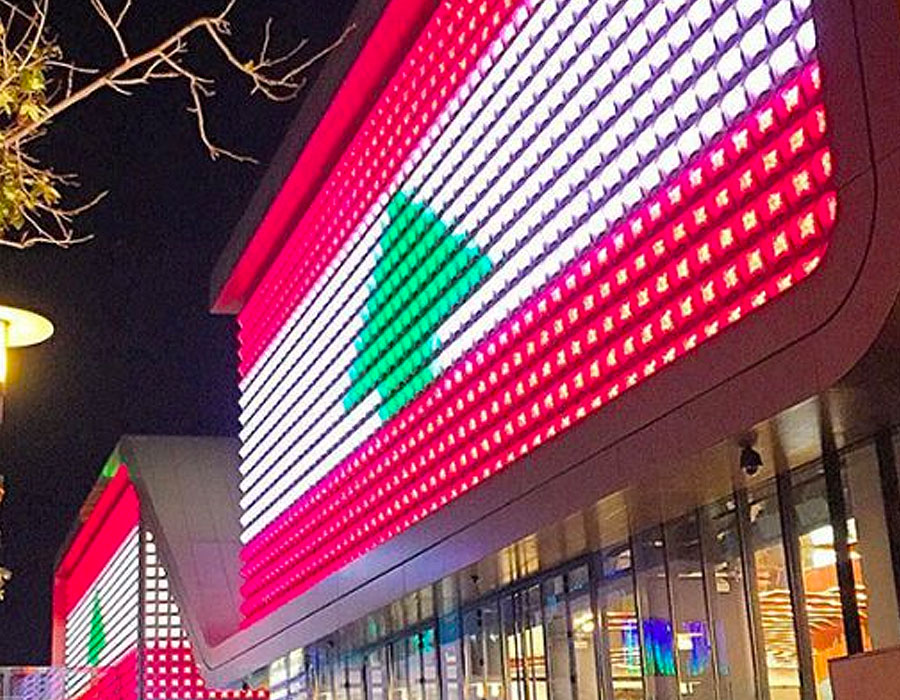

A media façade can look very different during the day and at night.

Daylight, glazing, surrounding buildings, street lighting and the transparency of the display structure all influence how the installation is perceived.

Where transparency is important, the design should consider how much of the building remains visually open behind the display.

Brightness should also be considered in context.

A façade may require sufficient output for the intended viewing conditions while also allowing appropriate dimming or operating levels after dark.

The correct approach depends on the location, surrounding environment and agreed content strategy rather than one fixed brightness assumption.

The display should be considered alongside the building materials, façade rhythm, structural grid, glazing, cladding and other architectural elements.

This is particularly important when the installation is being designed as part of a new project or major refurbishment.

Early coordination with architectural and design firms can help establish where the display belongs within the façade rather than attempting to resolve the integration only after finishes and interfaces have already been finalized.

The display should support the intended architectural composition without assuming control over unrelated façade-design responsibilities.

Exterior façade systems are exposed to conditions that indoor displays do not experience.

Rain, dust, temperature, solar exposure and wind can affect equipment selection, enclosure details, mounting arrangements and maintenance planning.

The specific environmental requirements should be reviewed against the installation location and selected display system.

Where the display forms part of an exposed building elevation, its supporting interfaces and access strategy may also need coordination with the wider façade and structural design.

Required professional approvals or certifications remain the responsibility of the appropriately appointed parties unless explicitly included in the agreed project scope.

A media façade needs defined physical and electrical interfaces with the building.

Mounting points, equipment locations, power provision, signal routes and cable paths should be coordinated before installation.

Some projects can use relatively direct connections, while others require more detailed technical planning because of façade geometry, long cable routes, limited equipment space or restricted access.

Where deeper coordination is required, engineered solutions can address the display-related structure, mounting, power, cabling, controls, access and installation requirements within the agreed scope.

Façade systems should not be planned only around the day of installation.

LED modules, power equipment, controllers and cabling may eventually require inspection, servicing or replacement.

Access routes, removable panels, working clearances and the direction from which components can be reached should therefore be considered before the system is enclosed by architectural finishes.

This is particularly important on large elevations where reaching the display later may require specialist access equipment or coordination with the building’s maintenance strategy.

Practical service access should be designed into the installation wherever the site permits it.

The content shown on a media façade becomes part of the building’s public-facing appearance.

Its scale, movement, brightness and operating schedule should therefore be considered in relation to nearby roads, neighbouring properties, public spaces and the wider visual environment.

Content suitability, permissions and operating restrictions can vary by location and should be treated as project-specific requirements.

The display system provides the visual platform; content production, approvals, scheduling systems and third-party data sources should be defined separately according to the project scope.
